- Target line and guidance arrows quickly identify distortion.
- Proximity signal and signal strength help work through difficult locates.
- Trace any frequency from 10 Hz to 35 kHz.
|Active Line Trace Frequencies *||128 Hz, 1 kHz, 8 kHz and 33 kHz.|
|Passive Power Trace||50 Hz, 60 Hz, <4 kHz Broadband.|
|Passive Radio Trace||4 kHz-15 kHz, 15 kHz-36 kHz.|
|Sonde Frequencies *||16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz.|
|Power Source||4 C-Cell batteries (included) or Rechargeable RIDGID® Professional 18V battery with RIDGID SeekTech® 18V Adaptor (optional).|
|Battery Life||Varies with battery rating, use and operating factors. Four size C, alkaline batteries provide approximately 10 to 15 hours. RIDGID® Professional 18V battery provides approximately 18 to 22 hours.|
|Weight||3.5 lbs. (1.6 kg).|
|Meets FCC Class A and EN 55022 Class A requirements.|
|* 30 user definable frequencies can be set from 10 Hz to 35 kHz.|

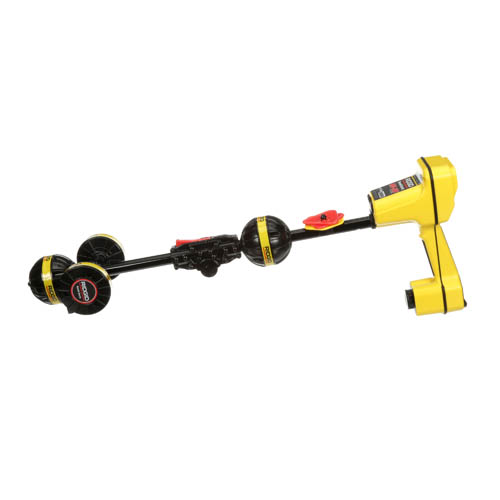

|21893||SeekTech SR-20 Line Locator||4.0||1.8|
|20973||SeekTech 4” (100 mm) Inductive Signal Clamp||2.00||0.90|
|21898||SeekTech ST-305 Transmitter||2.50||1.90|
|49343R||ST-33Q+ Line Transmitter with Bluetooth||11.10||5.00|
