SeeSnake NANOreel Inspection Camera

NANOreel

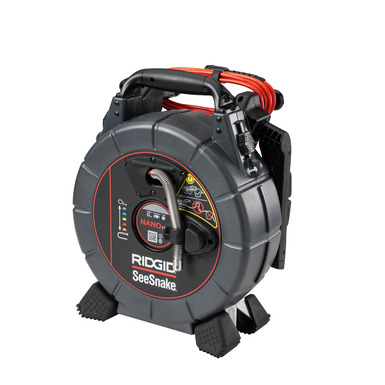

SeeSnake NANOreel Inspection Camera

NANOreel

The RIDGID SeeSnake® NANOreel inspection camera opens up new possibilities in drain inspection with the smallest-diameter camera and most flexible push cable of all SeeSnake® systems. This reel is ideal for long-run, small-diameter runs. Applications where only borescopes could reach can now be inspected using the NANOreel inspection camera. Boiler tubes, supply lines, sprinkler systems and a wide array of specialty applications can be inspected using the NANOreel inspection camera.

Show Less
Read More
Buy Now

Features

  • Maneuverability - Small 15mm camera head with ultra flexible push cable navigates tight spaces.
  • Small 15mm camera head with ultra flexible push cable navigates tight spaces. - Lightweight and compact carrying case design is easy to carry to jobsites and store in between.
  • Stability - Built-in kickstand can be used upright for tight spaces, at an angle for added leverage or on four feet to accommodate the CSx Via.
  • Durability - Hardened stainless steel camera head & spring assembly is durable and reliable for a long service life.
  • Visibility - Camera heads feature long-lasting high-efficiency LEDs that provide greater views inside pipes.
  • Camera heads feature long-lasting high-efficiency LEDs that provide greater views inside pipes. - Camera heads feature long-lasting high-efficiency LEDs that provide greater views inside pipes.
  • Versatility - Use with any SeeSnake monitor or Wi-Fi Hub.

Specifications

Camera Diameter 15.5 mm
Camera Type Fixed
Resolution 656 x 492 pixels
Line Capacity 1" to 2.5" (25 mm to 64 mm)
Push Cable Length 85 ft (26 m)
Push Cable Diameter .28 in (7.2 mm)
Cable Flexibility Ultra Flex
Push Cable Minimum Bend Radius 1.5 in (38 mm)
Sonde 512 Hz, Integrated
Weight 12.7 lbs (5.7 kg)
Length 13.3 in (337 mm)
Width 8.8 in (224 mm)
Height 16.2 in (411 mm)
Drum Diameter 12 in (305 mm)

Ordering Information
{{model}}
Catalog Number Model No. Description Weight (lb.)
70038 NANOreel  SeeSnake® NANOreel Inspection Camera  12  Buy Now
  • 71498 - Spare, Slipring Connector
  • 67307 - Assy, Interconnect Cable, Overmolded, 3m (10’)
  • 69758 - Kickstand Accessory
  • 42778 - 30mm and 25mm Pipe Guide Set, 16mm Camera Head, Pkg of 2
Accessories
{{model}}
Catalog Number Description Weight (lb.)
42778 30mm and 25mm Pipe Guide Set, 16mm Camera Head, Pkg of 2  0.20  Buy Now
55898 micro CA-350 Inspection Camera (115v)  2.00  Buy Now
67307 Assy, Interconnect Cable, Overmolded, 3m (10’)  1.10  Buy Now
67808 SeeSnake® CA-350 Adapter and Docking Handle  -  Buy Now
