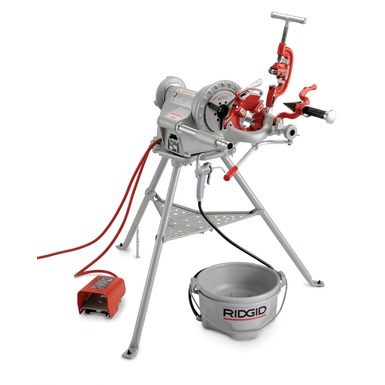

Model 300 Power Drive Complete
Read More
Features
- RIDGID® speed chuck.
- Reversible 1/2 HP universal motor.
- Ideal for use with RIDGID roll groovers.
- Heavy-duty proven performance : 1700W Motor.
- Lightweight, portable design at only 115-154 lbs (52-70 kg).
- Fast transport and set-up.
- Self-contained oil system with adjustable flow control.
- Versatility for threading and grooving.
- Quiet operation : 79.5 dB(A)
Specifications
| Recessed Switch | Heavy-duty forward/off/reverse and integral foot switch. |
| Chuck | Speed chuck with replaceable rocker-action jaws. |
| Rear Centering Device | Cam-action turns with chuck. |
| Support Bar | Heavy duty. |
Support Documents
Catalog Sheet
300 Power Drive Cat Sheet
(1.13 MB)
Instruction Sheet
300 Power Drive Instruction Sheet
(461.07 KB)
Transporter Instruction Sheet
(227.4 KB)
Operator's Manual
300 Power Drive Operator's Manual
(1.74 MB)
Parts List
300 Power Drive Parts List
(461.25 KB)
Warranty
Ordering Information
| Catalog Number | Model No. | Description | Oiler | Die Head | RPM | Voltage (V) | Frequency (Hz) | Phase | Motor Type | Amp Draw (A) | Power | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb. | kg | ||||||||||||
| 15777 | 300 Complete | 300SE Threading Machine | - | 811A | 36 | 230 | 50 - 60 | 1 | Universal | 8 | - | 202 | - |
300A includes automatic oiling
