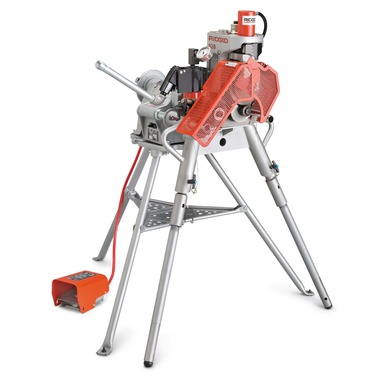

The RIDGID 920 Roll Groover takes grooving to a whole new level. With a capacity range of 2"-24" diameter pipe, the 920 has the largest capacity of any RIDGID roll groover. The 920 mounts to the RIDGID 300 Power Drive for use in the field or shop. Also available is the RJ624 Large Diameter Pipe Support for grooving pipe up to 24" in diameter, a perfect complement to the 920 Roll Groover.

Features

  • Largest grooving capacity in its class.
  • Transportation Mode – Detachable Wheels enable one man to easily move the 920 around a jobsite. Also available is a Model No. 32 Transporter.
  • Patented Depth Setting Gauge – Easy and accurate groove depth setting does not require adjusting the protective guarding.
  • Built-in Pressure Gauge – Helps operator monitor hydraulic pressure to control flare and optimize groove time.
  • Front Roll Set Change-Out – User can switch groove roll sets quickly and easily.
  • Easy Adjust Support Legs – Helpful when leveling the groover on uneven ground.

Specifications

Capacity 2" -12" Sch 5, 10, & 40 Steel, Stainless Steel, Aluminum*
14" - 16" Sch 5 & 10 Steel, Stainless Steel, Aluminum
18" - 24" .250 Wall Steel, Stainless Steel, Aluminum
2" - 8" Sch 40 PVC
2 1/2" - 4 Sch 80 PVC
2" - 8" Copper (K & L)
2 1/2" - 8" Copper (K, L, & M)
3" - 8" Copper (DWV)

Ordering Information


Catalog Number Model No. Description Weight
lb. kg
95782 920  920 Roll Groover with 2"- 6" Sch. 40, 8"-12" Sch. 40 and 14"-16" Std. Wall Roll Sets  380  90.30

Accessories

Catalog Number Model No. Description Weight
lb. kg
42575 32  #32 Transporter (for Power Drives and Tristand Vises)  14 1/4  6.50
76822   Inch Diameter Tape  1/2  0.10
76827   Metric Diameter Tape  1/2  0.10
96372 RJ624  Large Diameter Pipe Stand  167  75.70
96987   Drive and Groove Roll Set for 18" - 20" Sch. 10 Steel or Stainless Steel  21  9.50
96992   Drive and Groove Roll Set for 22" - 24" Sch. 10 Steel or Stainless Steel  22  10.00
