CS12x Digital Reporting Monitor with Wi-Fi

CS12x Digital Reporting Monitor with Wi-Fi

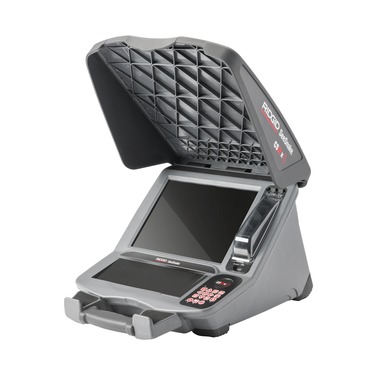

The RIDGID® SeeSnake® CS12x Monitor delivers a large screen, dual battery functionality and Wi-Fi connectivity. Designed to help you work smarter, not harder on the job site.

Show Less
Read More

Features

  • Enhanced Connectivity - Stream or record inspections to an iOS or Android phone or tablet with the free HQx® Live companion app.
  • Storage Option - Capture images and video directly to a USB drive.
  • Dual Battery Power - Two batteries can be installed to deliver maximum runtime at the job site.
  • Large 12.1" Display - At 12.1” and with a resolution of 1024x768 pixels, the upgraded high contrast display is crisp, clear and daylight readable.
  • More Powerful Processor - Delivers quick start-up time and snappy performance.

HQx® Live

With the HQx® Live companion app, your iOS or Android device becomes a portable monitor. Stream video lag-free straight from your RIDGID® SeeSnake® CSx monitor to your iOS or Android device. Control camera brightness and other key functions from your phone or tablet.

Get it on Google Play Download on the Apple App Store

RIDGID Connect

This product integrates with RIDGID Connect which is an online website designed for contractors and service providers that will allow you to create and share media-rich reports with your customers that include videos, documents, and pictures often collected from your jobsites.

Get it on Google Play Download on the Apple App Store

Specifications

Weight (without battery) 13.9 lb (6.3 kg)
Dimensions (LxWxH) 19.9" x 15.5" x 11.9" (506 x 394 x 302 mm)
Power Source 18V Advanced Lithium Battery or AC Adapter
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Display 12.1" (307 mm) Color LCD
Display Resolution 1024 x 768 Pixels, XGA
Video Format MPEG4 (H.264) 30 FPS
Photo Format JPEG
Autolog Format MPEG4 (H.256) Variable Frame Rate
Audio Integrated Microphone and Speaker
Transfer Method USB Drive

RIDGID Link

Introducing RIDGID Link™, a new mobile platform that interfaces with RIDGID® tools equipped with Bluetooth technology. Registration is quick and easy and the app provides valuable real-time data on your phone or tablet. Sign up today to start working faster…and smarter..

Download RIDGID Link on Google Play Download RIDGID Link on Apple Store

RIDGID is the trademark of Emerson Electric Co. or its affiliates and is registered in the U.S. and elsewhere. All third-party trademarks are those of their respective owners.

Ordering Information

Ordering Information
{{model}}
Catalog Number Description Weight
lb. kg
57283 CS12x Digital Recording Monitor w/Wi-Fi
Accessories
{{model}}
Catalog Number Description Weight
lb. kg
64393 Charger, 230V Australia  0.70
56513 18V 2.5Ah Advanced Lithium Battery

0.49
56518 18V 5.0Ah Advanced Lithium Battery

0.72
