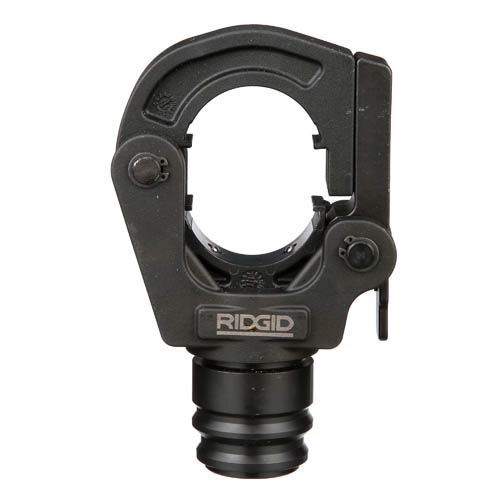

LR-60B Latching Round Crimp Head

LR-60B Latching Round Crimp Head

6 Ton Crimp Head used with round shaped crimp dies to crimp copper and aluminum connectors and wire for cable termination

Show Less
Read More

Features

  • Classified to UL 1976 for Copper Connectors and Wire From #8AWG to 600 Kcmil and Aluminum Connectors and Wire From #8AWG to 350 Kcmil
  • Quick release latching system for maximum efficiency
  • Crimp dies quickly snap into head – no push button or adapters to change dies
  • Slim compact design and 360° head rotation enables access to tight spaces
  • Compatible with 6 Ton dies from RIDGID and other manufacturers*
  • LR-60 B designed for 6-Ton U Dies ONLY
*For the most up to date RIDGID Crimp Die/Electrical Connector Compatibility Charts, go to www.RIDGID.com/CrimpDies.

Specifications

Crimp Capacity Up to 600 Kcmil (300mm²) Copper and 350 Kcmil (240mm²) Aluminum Wire and Connectors
Approximate Cycle Time 5 seconds
Crimp Head Weight 3.3 lbs (1.5kg)
LR60B Crimp head can be purchased as part of a kit for the RE6/RE60 Electrical Tool or as a separate crimp head to add to an existing kit

Ordering Information

{{model}}
Catalog Number Description Weight
lb. kg
47753 LR-60B Latching Round Crimp Head Only  3.3  1.5
  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getAggregateRating, 27ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getReviews, 2ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Is it possible use dies from other brand (not RIDGID) with the LR-60 Latching Round Crimp Head?

The dies from other manufacturers are compatible with RE60 Tool?
Asked by: danielmoraes
The LR-60 has been designed for use with industry standard 60 kN dies. To see the complete list of Lugs and Dies that have been tested and approved by RIDGID please see the compatibility guide posted at www.ridgid.com/crimpdies.
Answered by: RIDGIDSupport
Date published: 2014-11-11
