micro CA-350 Inspection Camera
Inspection and documentation made easy with the RIDGID micro CA-350 Inspection Camera, now with 12V power.
Read More
Features
- Easily records still images and videos for job reporting
- Ability to extend reach up to 100’ with small diameter SeeSnake® reels (microReel™, nanoReel®, microDRAIN®)
- 12V rechargeable Lithium-ion battery provides longer runtime for extended inspections
- Includes a durable blow-molded case for protective storage and transportation
- Interchangeable camera heads for smaller spaces and longer reaches
RIDGID Link
Introducing RIDGID Link™, a new mobile platform that interfaces with RIDGID® tools equipped with Bluetooth technology. Registration is quick and easy and the app provides valuable real-time data on your phone or tablet. Sign up today to start working faster… and smarter.
RIDGID Connect
This product integrates with RIDGID Connect which is an online website designed for contractors and service providers that will allow you to create and share media-rich reports with your customers that include videos, documents, and pictures often collected from your jobsites.
Specifications
| Display | 3.5" (90mm) Color TFT |
| Camera Diameter | 0.7" to 11/16" (17mm) |
| Lighting | 4 LEDs with adjustable brightness |
| Cable Reach | 3' (0,9m) (Expandable to 30' with optional extension, also compatible with microDRAIN®, microReel™ and nanoReel®) |
| Images | JPG 640x480 Resolution |
| Video | MP4 640 x 480 Resolution |
| External Memory | SD Card up to 32 GB (8GB SD card included) |
| Power Source | Rechargeable 12V Li-Ion Battery |

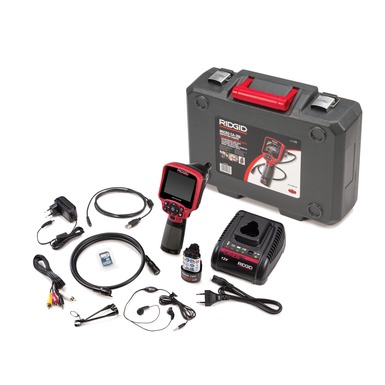

| Includes | micro CA-350 with 17mm imager, battery, charger, USB cable, hook, magnet and mirror accessories, RCA cable, AC adapter, headset with microphone, 8GB SD card |
Support Documents
Catalog Sheet
micro CA-350 Catalog Sheet
(1.29 MB)
Operator's Manual
Brochure
UN 38.3 Test Summary (55183)
(132.44 KB)
Warranty
Ordering Information
| Catalog Number | Description | Weight | Certifications | |
|---|---|---|---|---|
| lb. | kg | |||
| 57358 | CA-350 Handheld Inspection Camera, includes 12V Battery and Charger | 2 | 0.9 | EMC, FCC, EN61010-1, CISPR-22 |
Accessories
| Catalog Number | Description | Weight | |
|---|---|---|---|
| lb. | kg | ||
| 37103 | 17 mm Replacement Imager | 0.70 | 0.32 |
| 37108 | 3' Cable Universal Extension | 0.70 | 0.32 |
| 37113 | 6' Cable Universal Extension | 1.40 | 0.64 |
| 37098 | 6 mm Imager with 1 m Cable | 0.75 | 0.34 |
| 37093 | 6 mm Imager with 4 m Cable | 0.88 | 0.40 |
| 55183 | 12V Advanced Lithium 2.5Ah Battery | 0.40 | 0.18 |
| 37123 | Mirror, Hook & Magnet for 17mm Camera Head | 0.10 | 0.05 |
