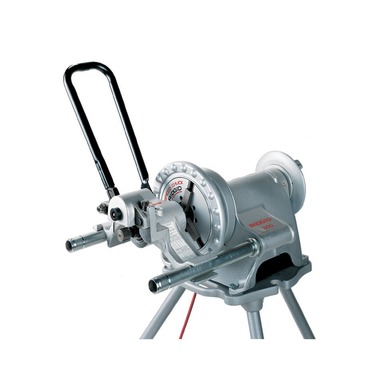

Power-Driven 916 Roll Groover

Power-Driven 916 Roll Groover

The RIDGID® Model 916 Roll Groover is the most durable and efficient lightweight portable unit available. Built with a solid, durable cast-iron housing, it withstands heavy usage, yet is light enough for easy transportation. The 916 features a patented single stroke feed mechanism that allows for accurate operation quickly and effortlessly.

Show Less
Read More
Buy Now
Request a Demo
Request Info
Register Your Product
Buy Parts

Features

  • Specifically designed for field service roll grooving applications.
  • Quick and easy mount to RIDGID 300 Power Drive, 535 or 300 Compact Threading Machines.
  • Cam-type feed actuation – translates into minimum operator effort to form roll grooves.
  • Depth adjustment screw separate from feed mechanism allows for consistent groove depth.
  • Lightweight for easy transport and storage.
  • Integral feed handle is part of overall unit. No extra tools required.
  • Easy serviceability – drive and groove rolls are easy to change.

Specifications

Capacity 1 1/4" - 6" Schedule 10 steel and stainless steel.
1 1/4" - 3" Schedule 40 steel and stainless steel.
Optional 2" - 6" copper (Type K, L, M, DWV).
Optional 1" Schedule 10, 40 steel pipe.
1 1/4" - 1 1/2" and 2" - 6" AWWA roll sets.

Ordering Information
{{model}}
Catalog Number Model No. Description Weight
lb. kg
45007 916  Roll Groover for 300 Power Drive  33  15.0  Buy Now
  • 45397 - Shaft, ASM Drive 916
  • 45587 - Grooving Roll w/Bearings
46852 916  Roll Groover for Copper Tubing for 300 Power Drive  34  15.5  Buy Now
  • 45397 - Shaft, ASM Drive 916
  • 45587 - Grooving Roll w/Bearings
60382 916  Roll Groover for 535  33  15.0  Buy Now
  • 45397 - Shaft, ASM Drive 916
  • 45587 - Grooving Roll w/Bearings
48307 916  Roll Groover for 300 Compact/ 1233  33  15.0  Buy Now
  • 45397 - Shaft, ASM Drive 916
  • 45587 - Grooving Roll w/Bearings
Accessories
{{model}}
Catalog Number Description Weight
lb. kg
45347 Roll Set f/1" incl. Ref. No. 35 & 36  6  2.6  Buy Now
45352 Roll Set f/Copper Tubing incl. Ref. No. 35 & 36  6  2.6  Buy Now
69667 Roll Set 1 1/4" to 1 1/2" (AWWA)  6  2.6  Buy Now
69692 Roll Set 2" to 6" (AWWA)  6  2.6  Buy Now
67662 Adapter Bracket for 300 Compact  30  13.6  Buy Now
76822 918 Roll Grover Inch Diameter Tape  1/2  0.1  Buy Now
76827 918 Roll Grover Metric Diameter Tape  1/2  0.1  Buy Now
Note: A Roll Set consists of a Groove Roll and a Drive Roll.
*The adapter bracket allows 916 Roll Groover for 300 Power Drive (#45007) to be mounted on a 300 Compact
Pipe Size & Schedule Capacities
Model Material Pipe Size (inches/Schedule)
916 1 1 1/4 1 1/2 2 2 1/2 3 3 1/2 4 4 1/2 5 6 8 10 12 14 16 18-24
Steel Sch. 5, 10, 40 Sch. 5, 10
Stainless 5, 10 Sch. 5, 10, 40 Sch. 5, 10
Aluminum Sch. 5, 10, 40 Sch. 5, 10
PVC Sch. 40 Sch. 40, 80 Sch. 40
Copper K,L K,L,M K,L,M,&DWV

Note: Use of all roll sets on both carbon and stainless steel pipes can lead to contamination of the stainless material. This contamination could cause corrosion and premature pipe failure. To prevent ferrous contamination, use roll sets dedicated for stainless steel grooving.

Note: Consult groover manual for exact capacity specifications.

  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getAggregateRating, 61ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getReviews, 3ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Is there an adapter to run the 916 on the 1822?

Asked by: Johnnyh
Hi, thanks for your inquiry. Unfortunately, 1822 is a discontinued product therefore there is no adapter to run a 916 on that machine.
Answered by: RIDGIDCustServ
Date published: 2017-09-26
