K9-102+ FlexShaft® Machine

K9-102+

K9-102+ FlexShaft® Machine

K9-102+

The RIDGID K9-102+ is a smaller version of the FlexShaft® Machine, with a lightweight and portable design perfect for 1 1/4"- 2" (32 - 50 mm) pipes and includes 50' (15,2 m) of 1/4" (6 mm) cable enclosed inside the durable but flexible nylon-sheath. Faster setup and cleanup, quick cleaning, and cordless convenience make for additional time saving.

This upgraded version has latches around the perimeter to provide easy access to the inside of the machine, an improved cable clamp for increased cable protection, and on-board hex key storage.

Show Less
Read More

Features

  • Increased Productivity - Faster setup and cleanup, quick cleaning, cordless convenience and easy to transport​
  • Wall-To-Wall Clean - Chain knockers expand for full pipe cleaning​
  • Simultaneous Camera Use - Inspect pipe while cleaning it out
  • Fully Enclosed System - Faster setup and cleanup to get you in and out of jobs quickly​
  • Accessories - Full range of chain knockers, brushes and accessories are available

Specifications

Cable Length 50' (15,2 m)
Cable Diameter 1/4" (6 mm)
Area of Application Sinks, tubs, urinals, showers
Type of Blockage Build ups, grease & light roots

Ordering Information

{{model}}
Catalog Number Model No. Description Weight
lb. kg

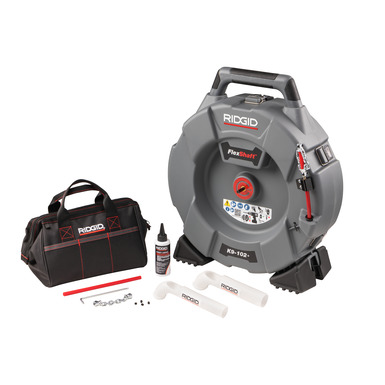

76193 K9-102+  FlexShaft™, K9-102+ for 1 1/4-2" (32 - 50 mm) Pipes; Includes: 50' (15,2 m) 1/4" (6 mm) cable and kit  24.30  11.02  Buy Now
  • 64293 - FlexShaft® Knocker, K9-102, 1.5"-2" (32 – 50 mm), single chain
  • 64298 - FlexShaft® Knocker, K9-102, 2" (50 mm), 2 chain
  • 64343 - Assembly, FlexShaft® Cable K9-102, sheath, couplings, 50' (15,2 m)
  • 64643 - Accessory, 1/4” (6 mm), K9-102, Sheath stk, 12" (30.5 cm)
  • 68623 - Bag, Drain Cleaning Bag Only
  • 64363 - Accessory, 1.25" (32 mm) Wallpipe
  • 64368 - Accessory, 1.5" (40 mm) Wallpipe

FAQ

  • How does the FlexShaft system clean drains?

    A user-supplied cordless drill spins a flexible cable within a nylon sheath while a chain knocker expands to the pipe's inner diameter to break blockages and clean walls; carbide-tipped knockers are available for scale and light roots, and plain chains for general grease and soft blockages. The system is lightweight and works well with inspection cameras during cleaning.

  • Are there any limitations on fixtures or materials to clean?

    It is not recommended to clean glass, ceramic, porcelain, or similar fixtures with FlexShaft drain cleaners as they may be damaged.

  • What drill specifications are required for the K9-102+?

    Use a cordless drill with 1800–2500 RPM, 3/8" (10 mm) or greater chuck, adjustable clutch, momentary contact switch, and no switch lock. Do not use corded drills, hammer drills, or impact drivers. Set the drill in screw driving mode so the clutch functions, and begin with a low clutch setting around 25% of the range.

  • How should I prepare the work area and machine before use?

    Operate in a clear, level, stable, dry location and do not stand in water. Inspect the drain, identify access points, pipe sizes, materials, and blockages; remove fixtures if needed and avoid running the knocker in fixtures. Position the cable outlet within 3' (1 m) of the drain inlet, and have water flowing during cleaning to wash debris away.

  • How do I install and adjust the chain knocker?

    Select the correct knocker for pipe size and application, ensure proper setup and adjustment, and begin with conservative clutch settings. Keep at least 1' (0.3 m) of knocker inside the drain before rotation and avoid forcing the knocker into blockages; increase clutch setting as needed up to about 75% if it continues to slip.
