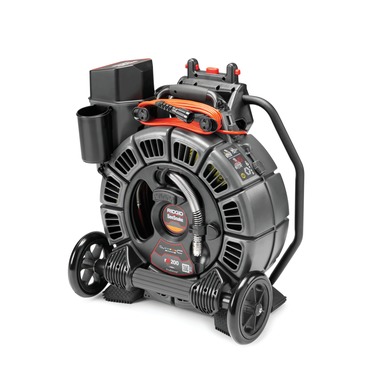

SeeSnake® rM200B Series with TruSense®

RM200B

SeeSnake® rM200B Series with TruSense®

RM200B

The SeeSnake® rM200B camera reel combines portability and versatility with its interchangeable D2 drum series, offering different combinations of push cable stiffness and spring flexibility to tackle any inspection job. Included TruSense® technology vastly improves down pipe visibility with its High Dynamic Range (HDR) image sensor and its TiltSense™ inclinometer. Ideal for tackling lines up to 165' (50 m) in length and 2" to 8" (51 mm - 203 mm) in diameter, the rM200B is easy to maneuver, offers increased storage, and features a convenient docking system to transport SeeSnake monitors.

Show Less
Read More

Features

  • Enhanced camera functionality - TruSense technology with High Dynamic Range (HDR) sensor and TiltSense inclinometer give crisp, always upright images and feedback on camera angle in-pipe
  • Interchangeability - Easily interchangeable D2 drums for on-the-job flexibility and compatible with all SeeSnake monitors
  • Pushability - Drums feature different push cable lengths, diameters, stiffness, and springs for customizable jobs
  • Portability - Multi-functional pull handle and smooth wheels for easy transport and positioning
  • Increased storage - New taller stowbins with increased internal capacity to store jobsite essentials

Specifications

Length 535 mm (21.0 in)
Width 345 mm (13.6 in)
Height 610 mm (24 in)
Drum Diameter 432 mm (17 in)
Camera Diameter 25 mm (1 in)
Camera Type Self-leveling with TruSense®
Camera Resolution 640 x 480
Spring Type Dual nested
Spring Length 435 mm (17.1 in)
Line Capacity 51 mm - 203 mm (2 in - 8 in)
Push Cable Length 50 m (165 ft)
Push Cable Diameter 8.9 mm (0.35 in)
Push Cable Minimum Bend Radius 89 mm (3.5 in)
Sonde 512 Hz, Flexmitter®

Ordering Information

{{model}}
Catalog Number Model No. Description Weight (lb.)
63663 RM200B  REEL,165' RM200B 25MM SL TS  Buy Now
Accessories

{{model}}
Catalog Number Description Weight
lb. kg
70758 ASSY, D2A DRUM WITH SL CAMERA  16.3  7.39  Buy Now
  • Camera Reel
  • D2A Drum
70763 SeeSnake® D2B Drum (165' / 50 m) with Self-Leveling Camera powered with TruSense®  Buy Now
  • Camera Reel
  • D2B Drum
44038 rM200 Stow Bins  Buy Now
17553 WRENCH, SPANNER SS 25  0.0  0.01  Buy Now
35338 GUIDE, MICROREEL (2PK) BALL  Buy Now
40598 SET OF, MREEL LG/25MMPIPE GDE  Buy Now
46708 GUIDE, RM200 85MM PIPE  Buy Now
46713 GUIDE, RM200 125MM PIPE  Buy Now
47793 GUIDE, CAMERA HEAD 25MM  Buy Now
63868 KIT, PIPE GUIDES, 25MM, 5 PK  Buy Now
66483 CASE, CS6X VERSA MONITOR  4.6  2.10  Buy Now
