The new RIDGID® micro CA-25 is a compact handheld inspection camera with a fixed 17 mm waterproof imager head for basic and short-range inspection jobs.

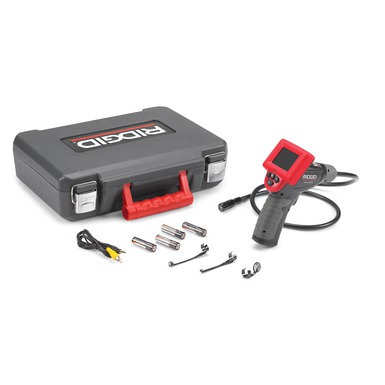

The micro CA-25 features a 17 mm aluminium imager head with 4 ultra-bright LED lights, bringing superior image quality to its 2.4” Color LCD Screen. It also features Video Out for transferring live images to external devices and 180° Digital Image Rotation for getting upright images. Included with the micro CA-25 in a hard shell plastic case are a hook, magnet, mirror and RCA cable.

Specifications

Display 2.4" Color LCD (480 x 234 Resolution)
Camera Head 17mm diameter, aluminum construction
Lighting 4 LEDs with adjustable brightness
Cable Reach 3' (90 cm), not extendable
Video Output 3' (90 cm) RCA Cable (included)
Image Rotation 180°
Waterproof Camera Head & Cable to 3' (90 cm)
Power Source 4 AA Batteries
Accessories Mirror, Hook & Magnet

Ordering Information


Catalog Number Description Weight
lb. kg
40043 micro CA-25 Inspection Camera  4.7  2.1  Buy Now

Replacement Parts

Catalog Number Description Weight
lb. kg
37123 Mirror, Hook & Magnet for 17mm Camera Head  0.1  0.0  Buy Now
Product:
Close
An error occurred while retrieving the distributors. Please try again.
Online Stores
Find a Store Near You
An error occurred while retrieving the distributors. Please try again.

Request Information

Rated 4.6 out of 5 by 98 reviewers.
Rated 5 out of 5 by Love it It s too easy to use The fisrt day i buy it i use it and i save to mutch Time I recomande this tool for any body hou whant To save time and be performent Tanks ridgid April 2, 2015
Rated 1 out of 5 by Nice concept - lousy execution My CA-25 worked for a total of approximately 3 minutes (new out of the box) before the camera failed. Its in for warranty repairs now, but I'm sorely disappointed that such a product would have RIDGID's name on it. I think you might need some help with your QA! Mecheng48, P.E. Consulting Mechanical Engineer Reliability - Failure Analysis - Maintenance Effectiveness Analysis April 1, 2015
Rated 4 out of 5 by great product Was a little skeptical at first about this product because of the cheap price. After getting the tool and using it I found that I really like it and it is saving us cost on drilling blind in plumbing chases. Love this tool and recommend it to anyone..I bleed true ridgid orange...nothing better. March 30, 2015
Rated 5 out of 5 by Awesome Tool! Comes in handy by being able to view the fireblocks and making sure my drill bit is in the middle and at a good angle. March 28, 2015
Rated 4 out of 5 by Good overall My only complaint is the cameras head was larger than expected and it doesn't allow you to capture photos. I have not tried the camera under water yet. March 18, 2015
Rated 4 out of 5 by Geat camera for under $100 Great inspection camera under $100. Have used it many times to check for leaks in tough to see areas March 17, 2015
Rated 5 out of 5 by Compact grip makes it easy to handle. Great optics, easy to use. Battery life is really good. Excellent product. March 14, 2015
Rated 5 out of 5 by some have criticized dim lighting - did not find it so Have used this a few times locating shorted wiring behind wallboard. I found the lighting to be plenty bright for local work. Altogether a fine product for general use. March 3, 2015
